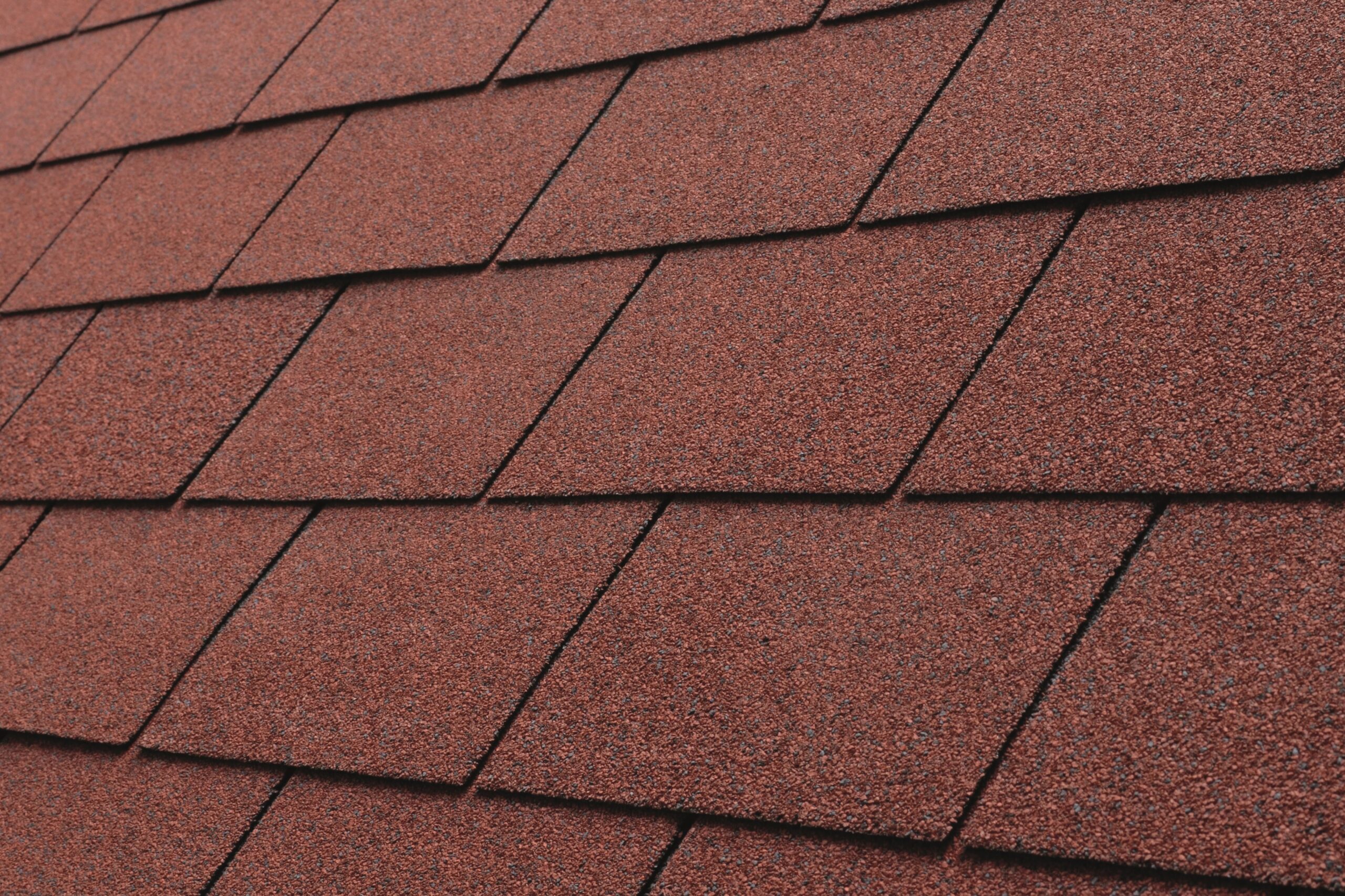

charBIT® bitumen roof shingle RECTANGULAR
- PRODUCED ACCORDING TO EN 544
Bitumen roof shingle with a carrier of glass fibre mat, having bitumen cover layer of oxidised bitumen on both sides, separation layers of fine mineral sand on the lower side and a mix of colour granulate on the upper side. It can be used to create a top layer of a multi-layer roof composition with a roof slope in a range of 15°-85°… more
Area of use
It can be used to create a top layer of a multilayer roof composition with a roof slope in a range of 15°-85°.
Documents
-
Declaration of performance
- Technical Data Sheet
- Guidelines for processing roof shingles
- Warranty for roof shingles – EN
Structure of product
Carrier: glass fibre mat
Lower side: fine sand
Upper side: coloured granules
Covering: oxidised bitumen
Technical specification
Thickness: 3,3 mm
Tensile strength: ≥600/≥400 N/50 mm
Temperature stability: 90 °C
Package
Quantity/roll (m²): 3,0
Quantity/pallet (m²): 90,0
Method of laying
By nailing and mutual bonding of adhesive thermal points on the upper side of the sheet.
Storage
The packages of bitumen roof shingles are stored on the pallets in covered warehouses on a dry, flat and solid floor and placed in one layer so that they are not exposed to UV radiation and direct weather influence. Near must not be any heat source.
Transport
The packages of bitumen roof shingles are transported on the pallets in one layer in the clean, covered and dry means of transport.
The installation of bitumen shingles
